We are specialized in manufacturing Gates for Knife gate valves. They are manufactured using high quality stainless steel procured from quality vendors. There are different sizes made by us sizing from 2 "- 36”.

Metal Seat   |   Slide through Gate   |   Resilient Seat
Gates for Knife gate valves
  Casturn valves are specialist in manufacturing gates for knife gate valves. They are commonly used as a means of shut off control. They are available with round openings. They are designed to handle slurries, pulp stock and corrosive fluids in process industries.
  Materials used in the manufacturing :
Knife gate sizes :
  • 2 "- 36 " for Dezurik Canada
  • 50 mm - 600 mm for Erhard Germany
  • 50 mm - 600 mm for Tyco Nowra Australia


  Stainless steel 304
  Stainless steel 304 L
  Stainless steel 316
  Stainless steel 316 L
  Stainless steel 316 Ti
  Stainless steel Duplex
  *As per the customers’ specifications

Salient Features:
  • Suitable for all industrial flow media
  • Suitable for wide range of pressure and temperature
  • Highly resistant to wear and corrosion
  • Maintenance with minimum downtime
  • Less weight and more compact
  • Easy for handling and erection
  • Better alternative to conventional valves in slurry, slag and pulp flow lines

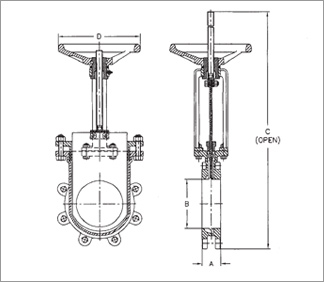

Size 50 (2”) 80 (3”) 100 (4”) 125 (5”) 150 (6”) 200 (8”) 250 (10”) 300 (12”) 350 (14”) 400 (16”) 450 (18”) 500 (20”) 600 (24”)
A 48 50 50 57 57 70 70 76 78 90 90 114 114
B 76 95.5 118 129 142.5 171.5 210 247 265 304 318 352 404
C 350 395 455 469 560 678 801 880 1037 1090 1211 1339 1552
C1 396 469 551 588 710 878 1049 1178 1387 1490 1649 1843 2166
D 152 191 232 260 285 343 420 492 530 609 635 717 832
J 124 149 205 244 265 335 350 455 468 535 586 648 748
H 170 170 170 250 250 300 400 400 - - - - -
